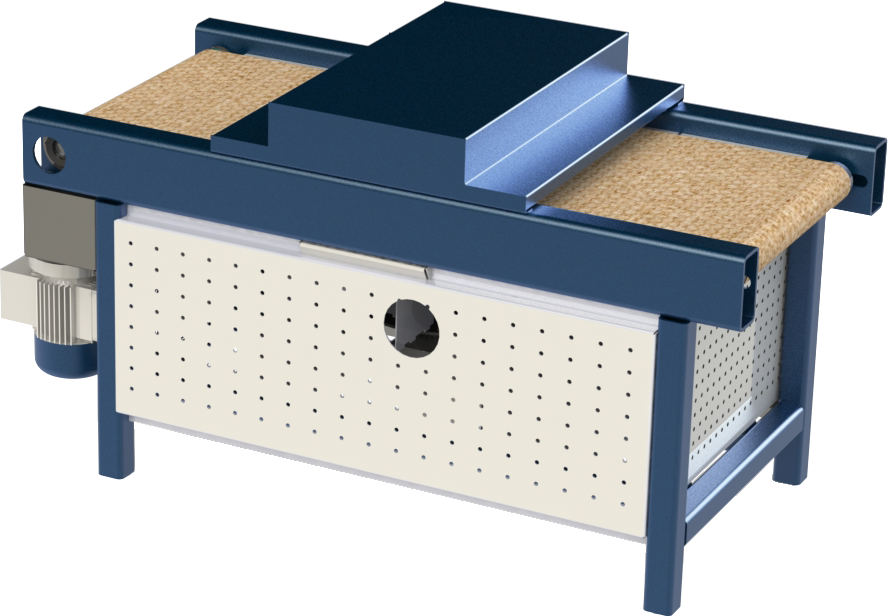

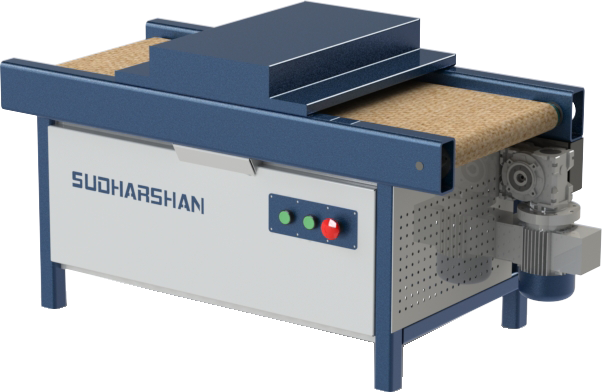

12 inch UV Dryer

12 inch UV Drer used to cure screen printing incks it comes along with themer  metalhelide UV bulb arc length of  12 inch ,conniver  feeding gap is 15 inches ,single phase 16 amps power supply .it is commonly used for fast curing application and special effect inks such as spot UV, glitter  effect

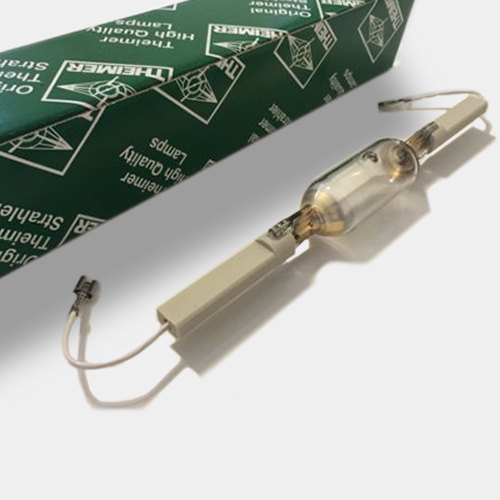

Themer ,bulb
Themer ,bulb

Dryer along with 12 inch THEMER bulb (Germany),

Description Details
UV Arc Length 12”(inches)
UV Watts per inch 200 watts
Curable Object Thickness 0-3 mm
Conveyer Width 15 inch
Curing Speed 5 mtr/min
Susitable Inks 200 watts screen Printing ink
Recommended Mesh 140 T or above
Electrical Power 440v /3 Ph/35 or 42 Amps
Overall Dimension(W X L X H) 20” X 50”X30”(inches)
Weight 110 kg Aprox

waiting for update
