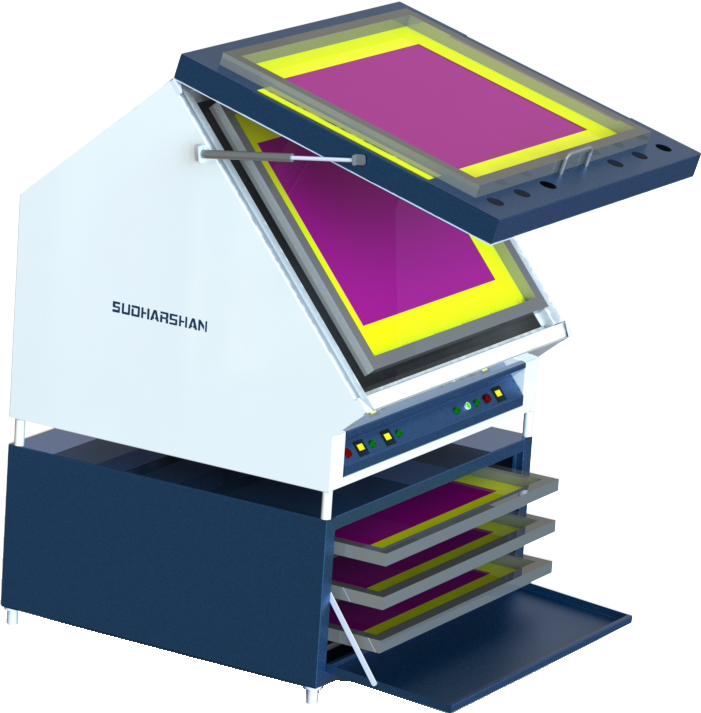

3in1 Exposure is a combinations of machinerys Exposure and Oven and Teasting Table ,Key Feature of this machine is most space saving design and

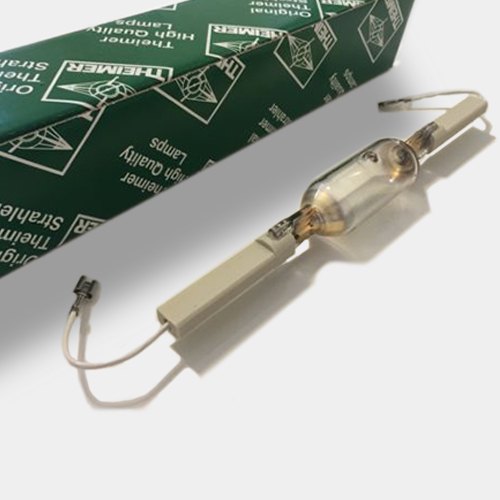

we are using 400 watts UV single bulb
| Description | Details |
|---|---|
| UV Bulb | 400 Watts Metalhealide |
| Screen Frame Size(L X W X T) | 32” X 38” X1.5 “(Inches) |
| Vacuum Motor | .2 Kwts |
| No. of racks | 3 nos |
| Cabin Temperature | 38-40 degree fixed |
| Curing Control | Using With Timer |
| Electrical Power | 220V/1 Ph/50Hz/8Amps(1Hp) |
| Overall Dimension(W X L X H) | 40” X 40 “ X60 “(Inches) |
| Weight | 170 Kg Approx |
closed view
Open View
