IR Dryer with 4 stage air circulation with PTFE tuflon coated mesh belt witstand up to 140 degree .this is Dryer is sustable for to cure PVC incks and Plastrosal Ink and Water base ink
We used Shortwave Ir Bulb for dust free curing
| Description | Details |
|---|---|
| Arc Length | 32 inches |
| IR Bulb Numbers | 3 bulb x 4 station = 12 Bulb |
| Curable Thickness | 0-5 mm |
| Conveyer Width | 36 inches |
| Minimum & Maximum Temp | 40 to 140 Degree |
| Electrical Power | 440V/50 AMPS/3 Phase |
| Over all Dimension(W X L X H) | 45” X 14 ft X30” |

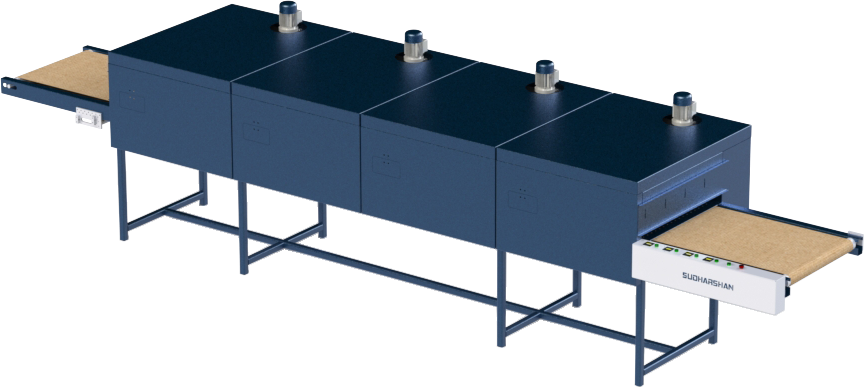

front view

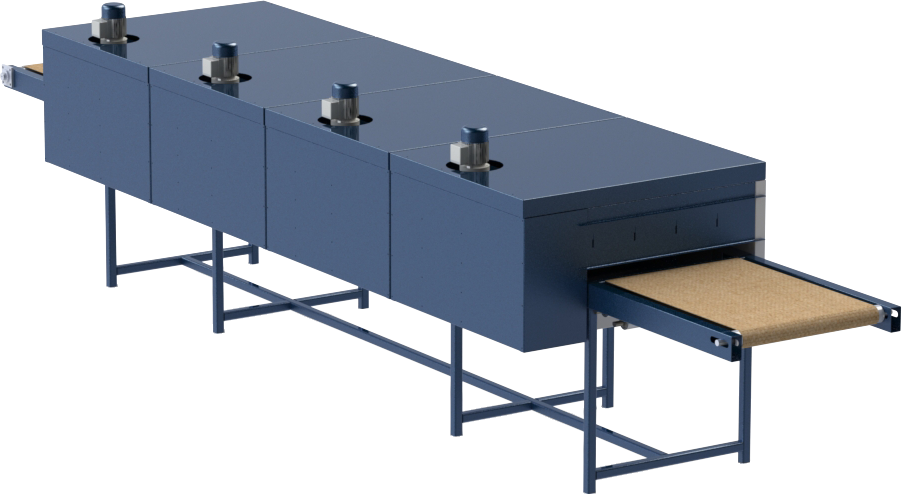

back view
