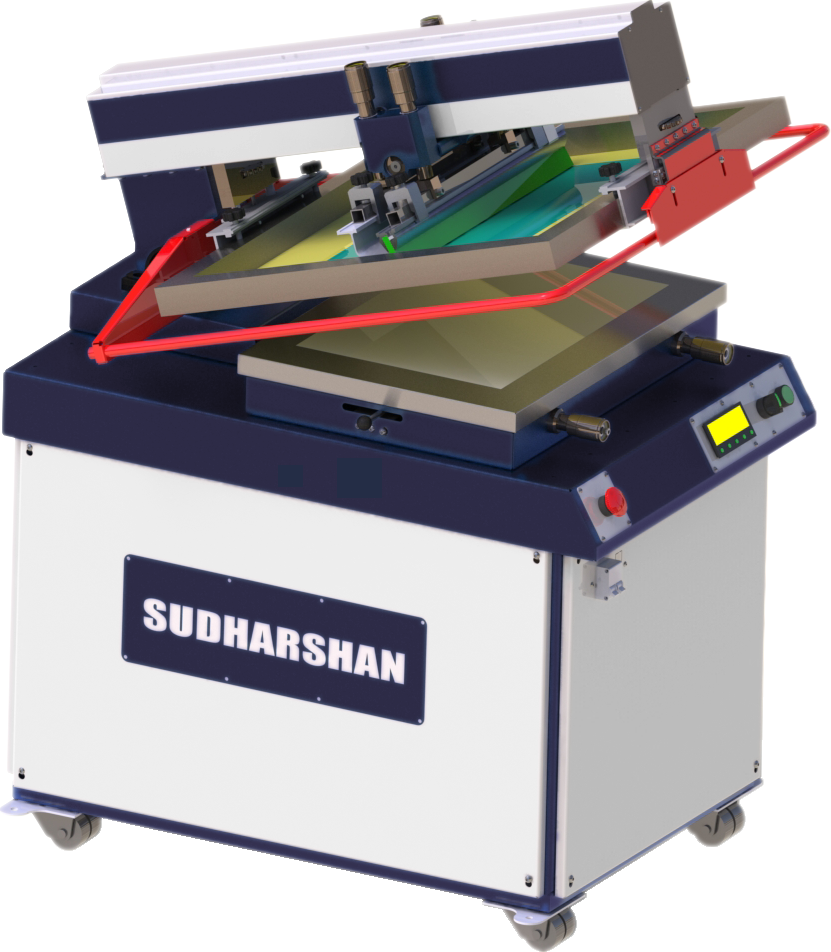

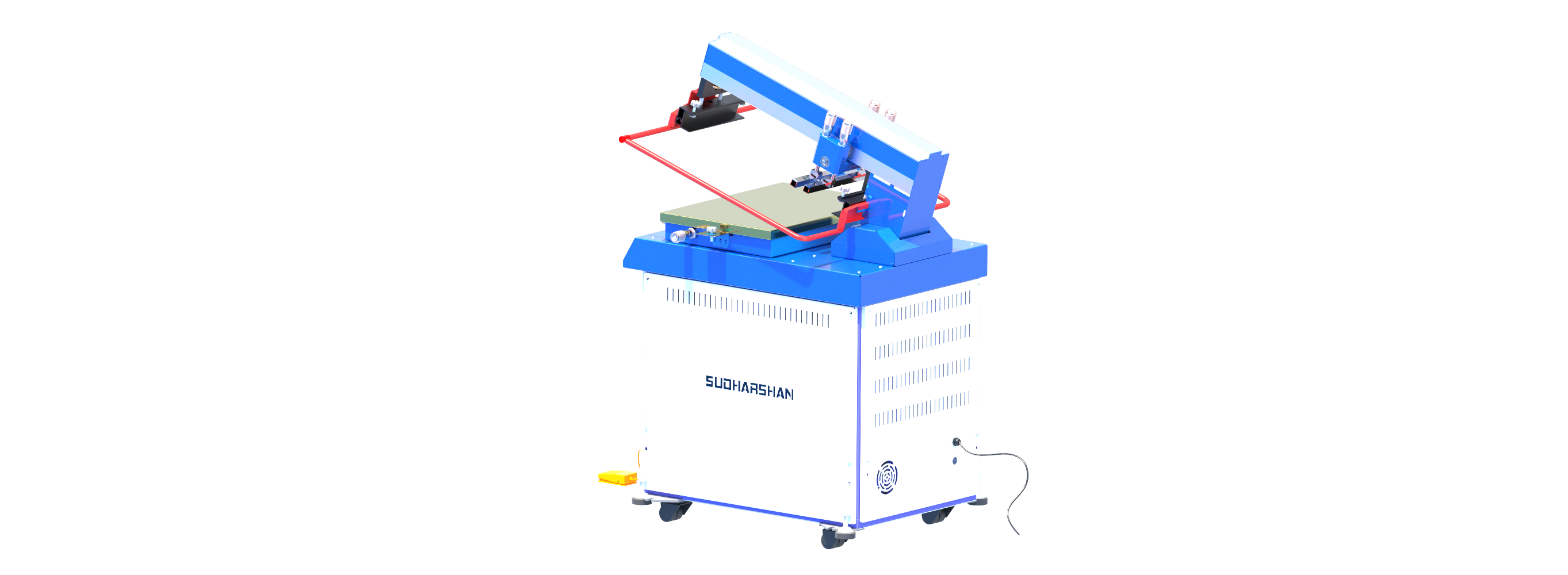

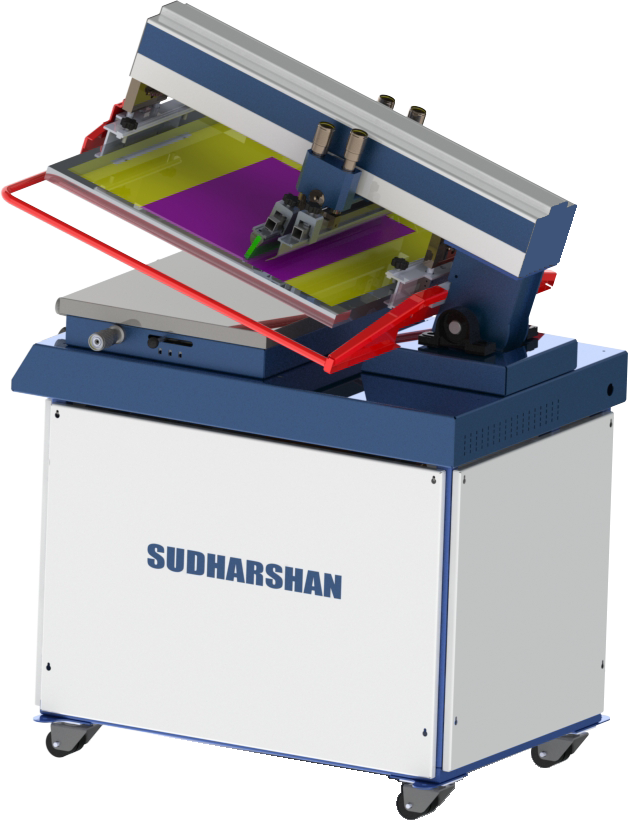

NexPrint 12 x 20v , an full featured entry level semi-automatic screen printing machine targeted to printers looking for low budget, high performance machines. The 12x20v, offered at a discounted price of INR2,60,000 plus, is meant for shopping bag printing such as wedding card ,sticker ,Heat transfer lables,non woven, paper bag, jute, polyester, PP and cotton bags. stickers, labels, garment tags, wedding cards and such other small area printing jobs. For those who wish to print jobs with UV ink or varnish, The other features are: adjustment of screen height, Separate squeegee pressure; the stainless vacuum bed has size of 16 x 22 inch. It can fit screen frame size of min 1 8 x 24 inch and max: 24 x 28inch. Weighing 165 kg approx, the compact machine has a dimension of 56 inch (L) x 40 inch (W) x 49 inch (H).
It is a single-phase printer which runs without a compressor. Moreover, screen printing inks and materials suppliers in every city are invited to take distributorship for NexPrint 1218 and it will be a game changer as it can add a new offering into their existing portfolio of diverse products.
The NexPrint can run at a production speed of 1050 impressions per hour and can be extended up to 1200 as per operators’ capabilities. Moreover, the compact machine can be placed in a 5×5 ft room, and use just a normal home power supply. It is especially designed to fit the entry door of a home or easily move into floors as it has Castor wheels.
As a Make in India Scheme, this entry-level screen printing machine will bring benefit to end-users, and offer the best screen printing solutions. Over the years, based on our customers’ feedback, we have been upgrading all our machines. Shortly, we are going to release one or two new models with striking features.

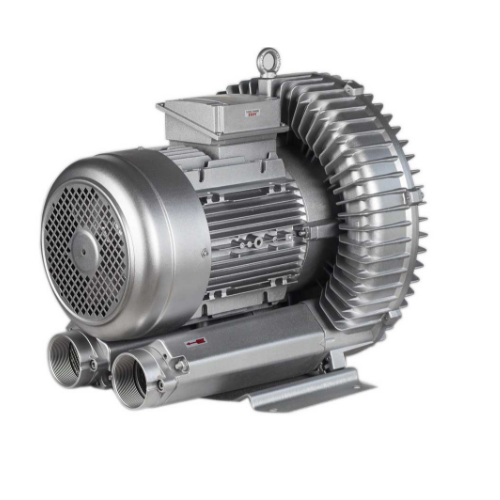

this machine have in buid bed vacuum for hold paper for perfect printing ,vacuum will be activate automaticaly in printing and deactivaed automaticaly while feeding or delivery

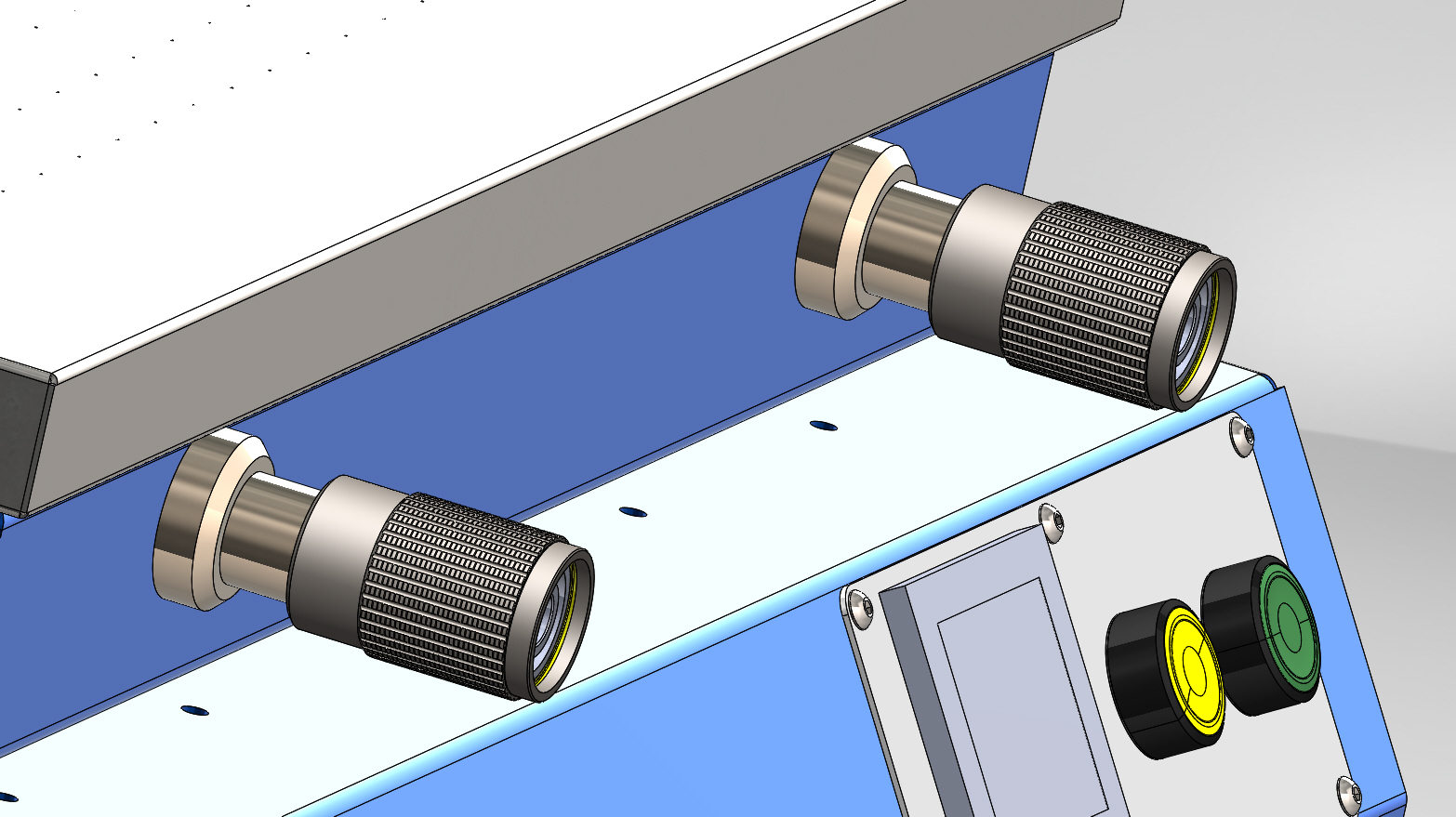

Spring loaded screen level adjustments for screen off contact settings

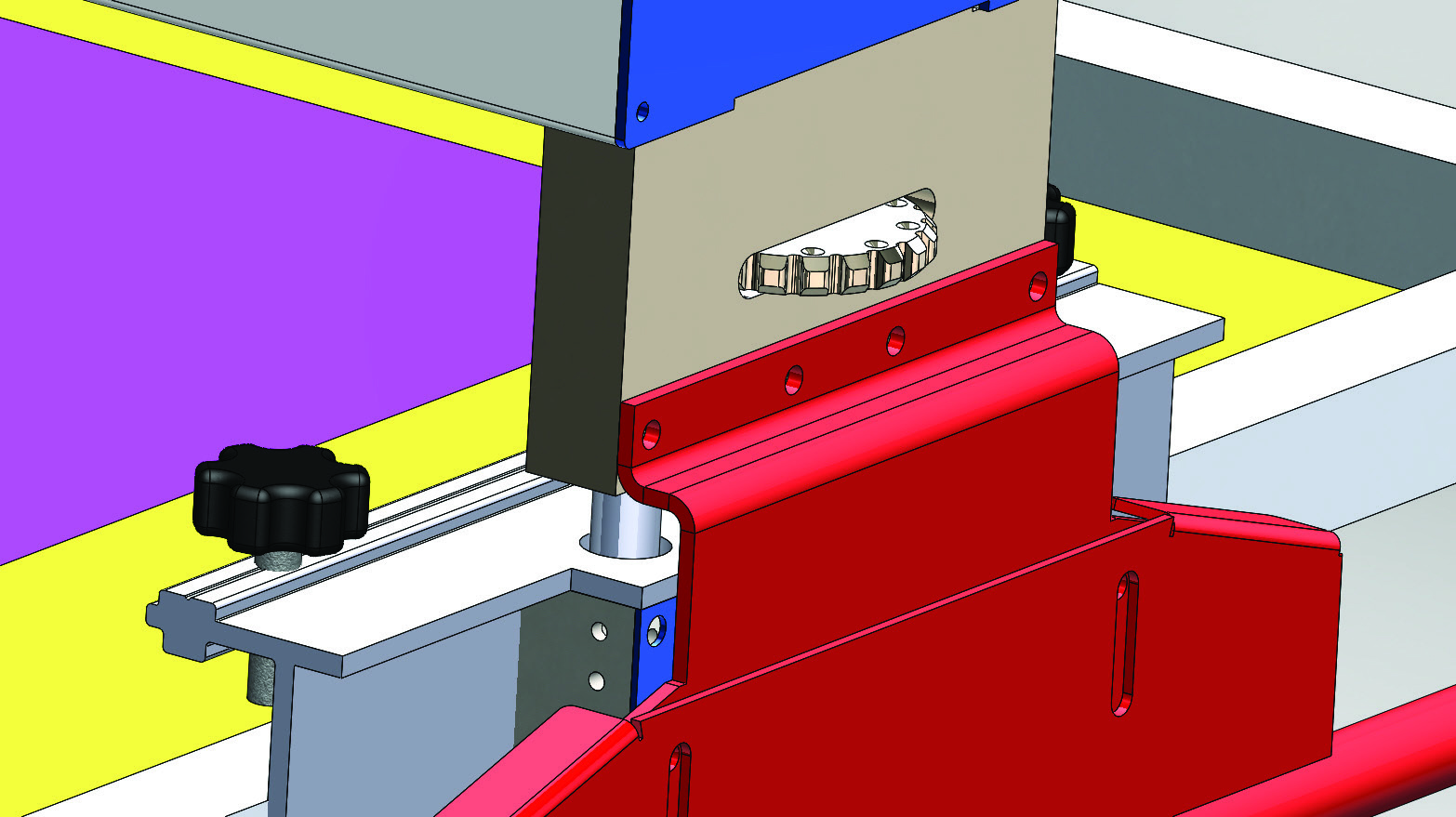

This is best option for printing alinment ,once bed moved in to position bed can be locked using with bed lock

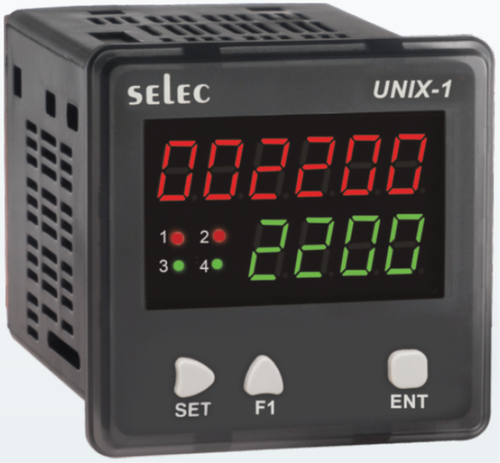

This option provide cycle counts in Auto mode as well semi automatic mode .Two types of counter is there one is resetable counter another one is permenent counter
Timer used for automatic cycle delay timeing for next cycle start ,it can be adjustabel as per customer conveniant 0 to 5 sec
Using this option this option can select ink Ready coat for printing or instent coat printing ,it is very usefull option to contol off the flowing ink and to contol ink depost or DFT (Dry Film Thickness )
|Max Print Area||12inch x20inch (304 mm x 500mm)|
|Bed||16inch x 24inch (409 mm x 600mm)|
|Vacuum Bed Movement for Registration||10 mm|
|Cycle Time||1050/ per hour non stop|
|Screen Frame Size Min:||24inch x 18inch (610mm x 457 mm)|
|Screen Frame Size Max:||24inch x 28inch (610 mm x 660 mm)|
|Max Off- Contact||10 mm|
|Max Substrate Thickness||3 ~ 5 mm (Depends on mesh tension)|
|Screen Frame Thickness||1 inch|
|Squeegee Holders along with machine||12inch (406 mm) min & 18inch (610 mm) max|
|Squeegee Holders Angle||19Â°|
|Flood Coater||13inch (330 mm) min & 19|
|Dimensions (LxWxH)||56 x 40Â x 49 (900 x 750 x 1050 mm)|

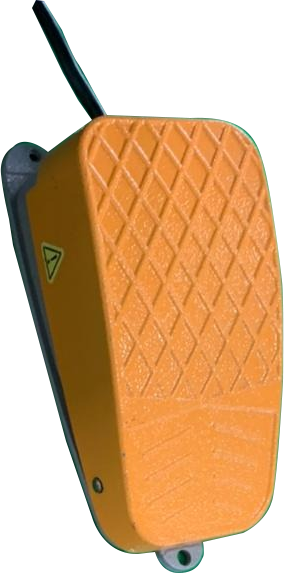

foot petal operation

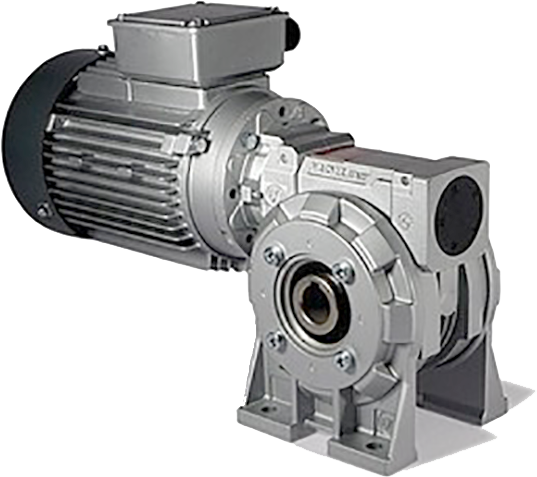

imported gear box
Easy screen Adjustment
Timer for automatic printing
