NexPrint 12 x 18, an entry level semi-automatic screen printing machine targeted to printers looking for low budget, high performance machines. The NexPrint 1218 v, offered at a discounted price of INR2,35,000 plus, is meant for shopping bag printing such as non woven, paper bag, jute, polyester, PP and cotton bags. This machine does not have a vacuum bed. The second model, such other small area printing jobs. The other features are: adjustment of screen height, Separate squeegee pressure; the stainless vacuum bed has size of 16 x 22 inch. It can fit screen frame size of min 1 8 x 24 inch and max: 24 x 26 inch. Weighing 165 kg approx, the compact machine has a dimension of 56 inch (L) x 40 inch (W) x 49 inch (H).
It is a single-phase printer which runs without a compressor. Moreover, screen printing inks and materials suppliers in every city are invited to take distributorship for NexPrint 1218 and it will be a game changer as it can add a new offering into their existing portfolio of diverse products.
The NexPrint can run at a production speed of 1050 impressions per hour and can be extended up to 1200 as per operators’ capabilities. Moreover, the compact machine can be placed in a 5×5 ft room, and use just a normal home power supply. It is especially designed to fit the entry door of a home or easily move into floors as it has Castor wheels.
As a Make in India Scheme, this entry-level screen printing machine will bring benefit to end-users, and offer the best screen printing solutions. Over the years, based on our customers’ feedback, we have been upgrading all our machines. Shortly, we are going to release one or two new models with striking features.
|Max Print Area||12inch x18 (304 mm x 457 mm)|
|Bed||16inch x 22inch (409 mm x 570 mm)|
|Vacuum Bed Movement for Registration||10mm|
|Cycle Time||1050/ per hour non stop|
|Screen Frame Size||Min: 24inch x 18inch (609 mm x 457 mm)|
|-||Max: 26inch x 24inch (864 mm x 1016 mm)|
|Max Off- Contact||10 mm|
|Max Substrate Thickness||3 ~ 5 mm (Depends on mesh tension)|
|Screen Frame Thickness||1.0 inch|
|Squeegee Holders along with machine||12|
|Squeegee Holders Angle||19Â°|
|Flood Coater||13” (330 mm) min & 19|
|Power Consumption||220v AC, single phase, 6 Amps, 50 Hz 1.5 HP (1.2 kW)|
|Dimensions (LxWxH)||56 x 40Â x 49 (900 x 750 x 1050 mm)|

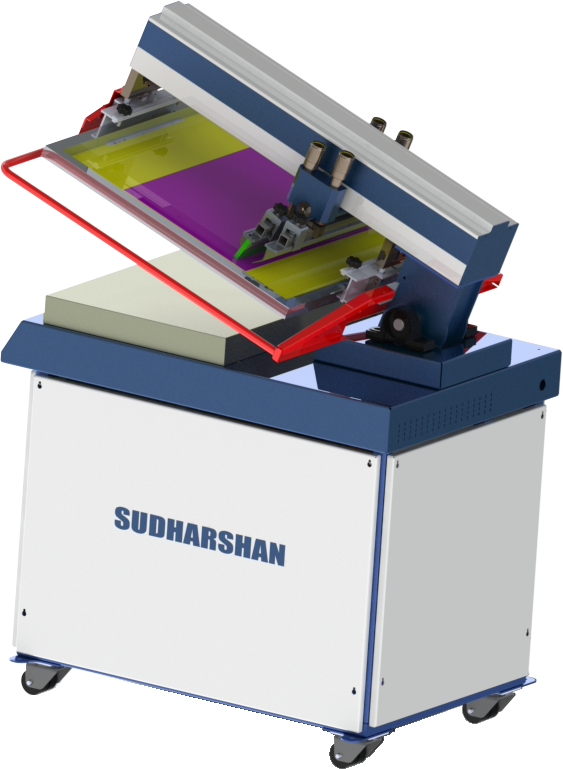

NexPrint front view

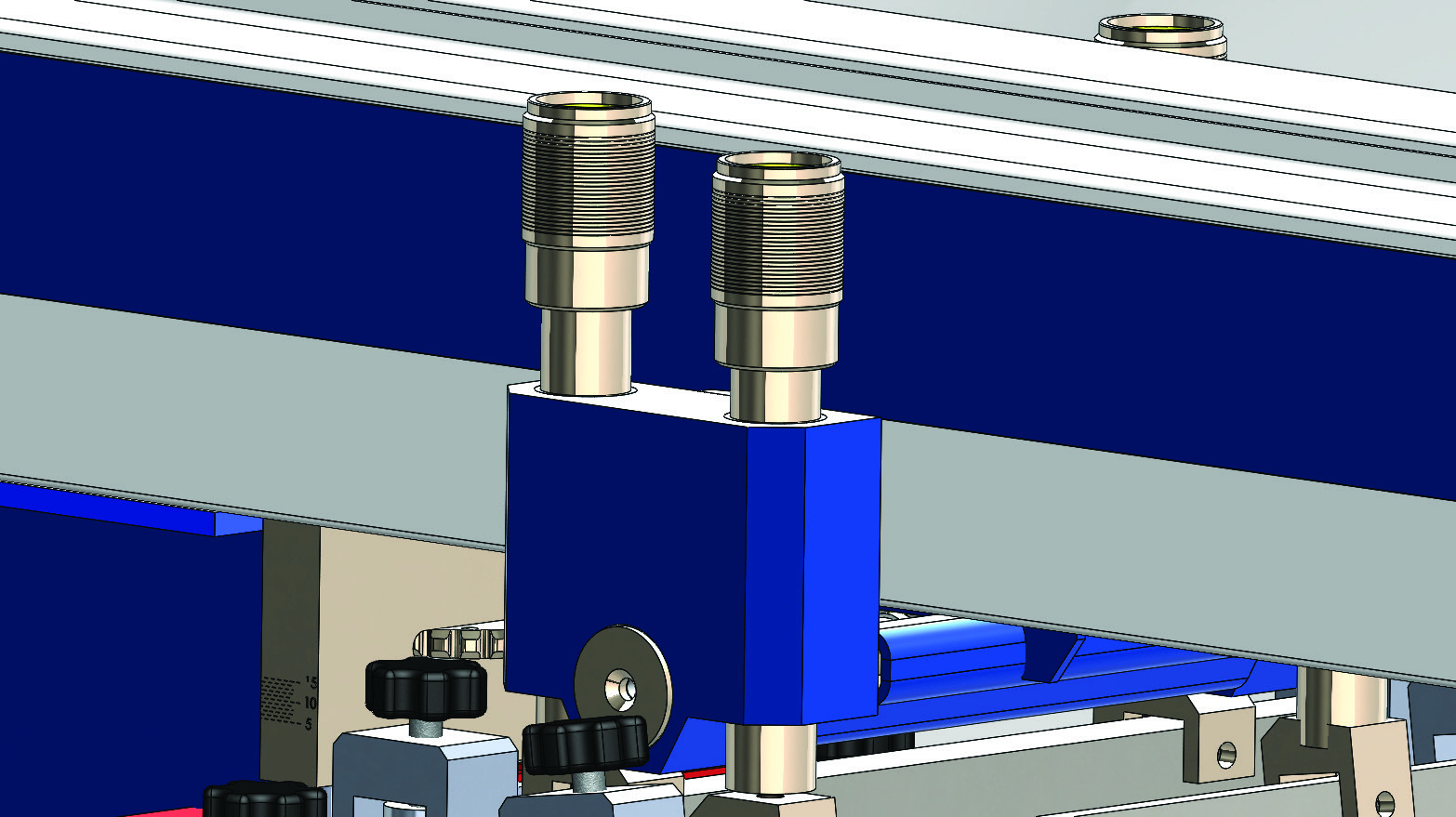

Easy squeeze pressure
Nexprint Back view
